Pike Superior 13/3-03 |
|
CG |
107-112mm |

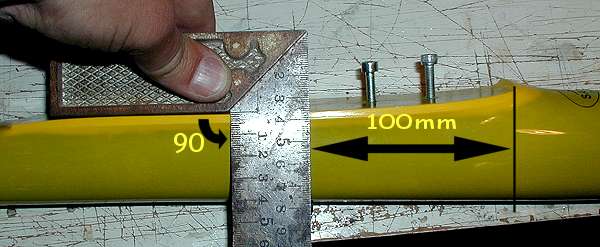

Hook : apx:
103mm from leading edge |
|
Surface/acting as |
Mode |
Direction |
Travel |
|
|
Aileron/Aileron |
start |
up |
16mm |
all measured
at wing tip, 40% expo |
|
|
speed |
up |
16mm |
|
|
|
Thermal |
up |
16mm |
|
|
|
start |
down |
13mm |
|
|
|
speed |
down |
13mm |
|
|
|
thermal |
down |
10mm |
|
|
Flap/Aileron |
start |
up |
10mm |
all measured
at wing root |
|
|
speed |
up |
10mm |
|
|
|
thermal |
up |
10mm |
|
|
|
start |
down |
6mm |
|
|
|
speed |
down |
10mm |
|
|
|
thermal |
down |
8mm |
|
|
Aileron/Crow |
All |
up |
7mm |
at tip |
|
Flap/Crow |
All |
down |
80degr |
at root
(apx 35/65mm) |
|
Elevator/crow mix |
All |
down |
2/3mm |
measurement
at half/full crow at ele tip. |
|
Elevator |
All |
up |
6mm |
all measured
at tip, 40% expo |
|
Elevator |
Speed |
up |
6mm |
all max
movement -9/+10 (ele/rud togheter) |
|
Elevator |
All |
down |
5mm |
Elev central
while flying thermal +1mm. (depp. CG/flap) |
|
Elevator |
Speed |
down |
5mm |
|
|
Rudder |
Speed |
up |
9mm |
40% expo. no
combi switch other than in start and F3F |
|
Rudder |
thermal |
up |
9mm |
40% expo. no
combi switch other than in start and F3F |
|
Rudder |
Speed |
down |
9mm |
40% expo. no
combi switch other than in start and F3F |
|
Rudder |
thermal |
down |
9mm |
40% expo. no
combi switch other than in start and F3F |
|
Speed flap (flap) |
speed |
up |
2-4mm ? |
Equal along
all trailing edge |
|
Speed flap (ail) |
speed |
up |
apx 1,5mm |
Measured at tip |
|
Speed flap (ele) |
speed |
down |
0mm |
Elev central while flying speed 0mm (adjust CG for level flight) |
|
Start flap (flap) |
start |
down |
12mm |
|
|
Start flap (ail) |
start |
down |
apx 8mm |
2mm less than flap (because of smaller aileron) |
|
Start flap (ele) |
start |
down |
0mm |
Can be -0,5mm depending on hook and CG |
|
Thermal flap (flap) |
thermal |
down |
0-5mm |
|
|
Thermal flap (ail) |
thermal |
down |
0-..mm |
0,5-1mm less than flap (because of smaller aileron) |
|
Thermal neutral (ele) |
thermal |
up |
0,5-1mm |
Might be mixed with thermal flap. |
|
snap flap (flap) |
good
air |
down |
2-5mm |
Max at 50% elevator throw |
|
Snap flap (ail) |
good
air |
down |
1,5mm |
Equal to flap
but slightly less
(because of smaller aileron) |
|
|
|
|
|
|
X-tail: (picture) |
|
|
|
|
|
Elevator |
neutral |
|
89,5mm |
Measured on top of steel rod and below tail. See
picture |
|
Elevator |
start/speed |
|
88,5mm |
If used in start the hook needs to be apx 103-105mm |
|
Elevator |
crow |
|
86/85mm |
measured at half/full crow with aileron only 7mm up |
|
Elevator |
All |
up/down |
96/84mm |
Servo arm
might need to be long if not fast servo is used. |
|
Rudder |
All |
left/right |
apx 30mm |
apx 50%
combi-switch while launching |
|
|
|
|
|
