Pike Plus |
|
CG |
102-108mm |
|
|
Surface/acting as |
Mode |
Direction |
Travel |
|
|
Aileron/Aileron |
start |
up |
16mm |
all measured at wing tip |
|
speed |
up |
16mm |
|
|
Thermal |
up |
16mm |
|
|
start |
down |
6mm |
|
|
speed |
down |
6mm |
|
|
thermal |
down |
6mm |
|
|
speed |
up |
0.5mm |
Equal along all trailing edge, measurement taken at ail tip. |
|
Flap/Aileron |
start |
up |
3mm |
all measured at wing root |
|
speed |
up |
3mm |
|
|
thermal |
up |
3mm |
|
|
start |
down |
3mm |
|
|
speed |
down |
3mm |
|
|
thermal |
down |
3mm |
|
|
speed |
up |
1mm |
Used to move to next
thermal quick |
|
Aileron/Crow |
All |
up |
19mm |
at tip |
|
Flap/Crow |
All |
down |
36mm |
at root |
|
Elevator/crow mix |
All |
down |
4,5mm |
measurement at full crow at
ele tip. |
|
Elevator |
All |
up |
6mm |
all measured at tip |
|
Elevator |
All |
down |
6mm |
|
|
Rudder |
All |
up |
7mm |
please no combi switch... |
|
Rudder |
All |
down |
7mm |
|
|
Speed flap (flap) |
speed |
up |
1mm |
Used in good air |
|
Speed flap (ail) |
speed |
up |
0.5mm |
Used in good air. Measured at tip |
|
Speed flap (ele) |
speed |
down |
0.2mm |
Measured at tip |
|
Start flap (flap) |
start |
down |
15/10mm |
|
|
Start flap (ail) |
start |
down |
5/3mm |
Measured at tip |
|
Start flap (ele) |
start |
down |
1.2mm |
Measured at tip |
|
Thermal flap (flap) |
thermal |
down |
3mm |
|
|
Thermal flap (ail) |
thermal |
down |
1mm |
Measured at tip |
|

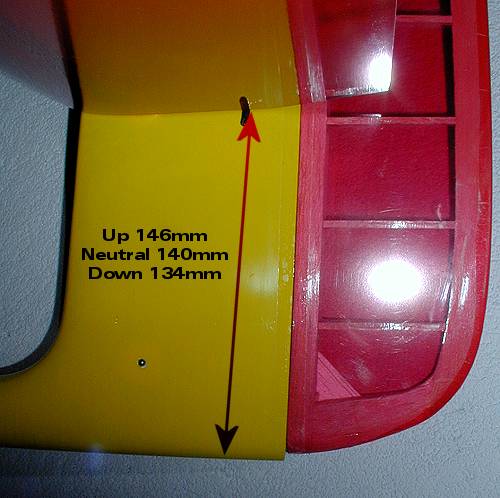

Elevator X-tail |
All |
neutral |
140mm |
Measured from.. see picture |
|
Elevator X-tail |
All |
up |
146mm |
Measured from.. see picture |
|
Elevator X-tail |
All |
down |
134mm |
Measured from.. see picture |
|
Rudder X-tail |
Thermal |
Left/right |
20mm |
Measured at top of rudder |
|
Rudder X-tail ail-rud |
start |
left/right |
8mm |
Combi-switch aileron-rudder during start |
