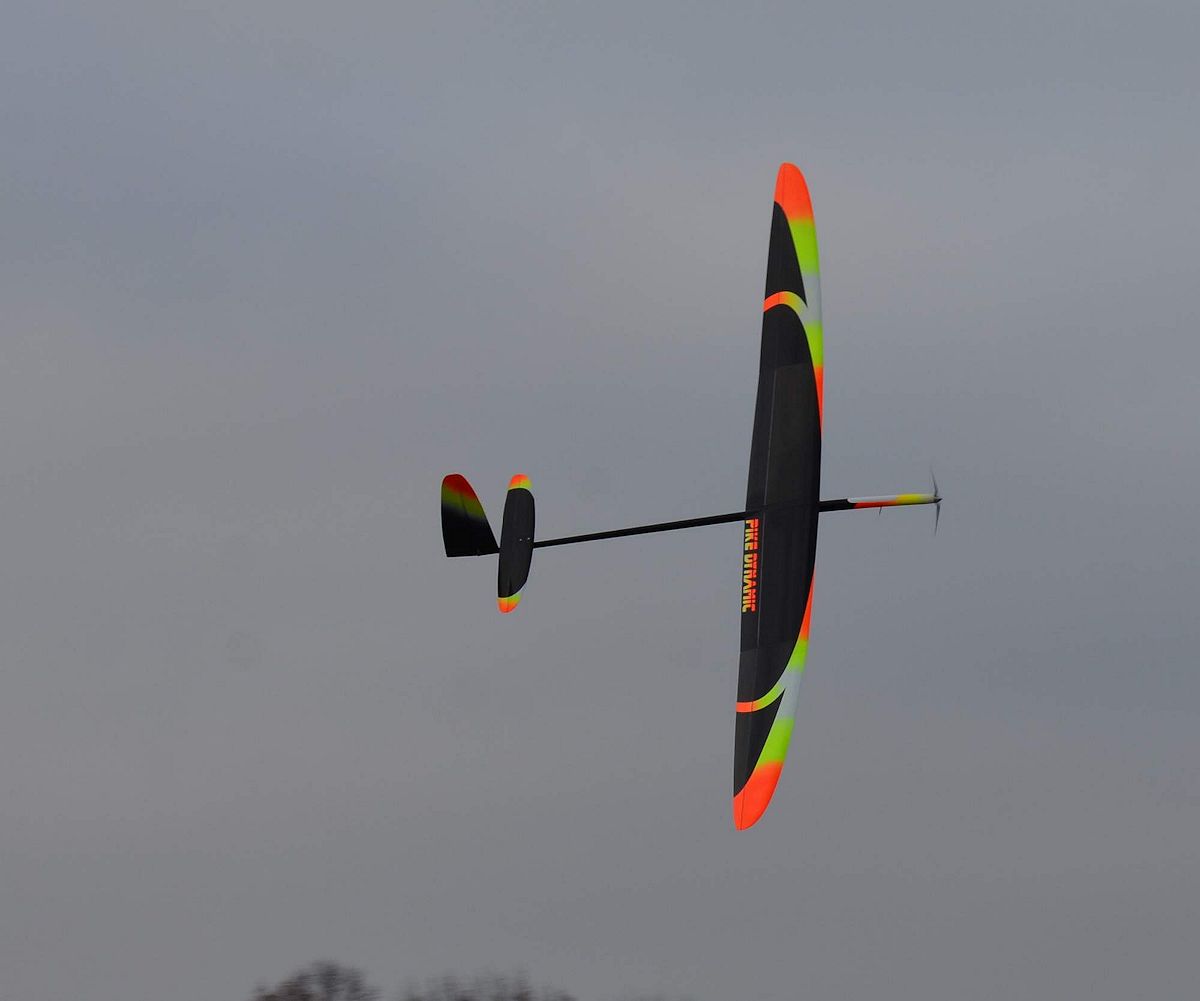

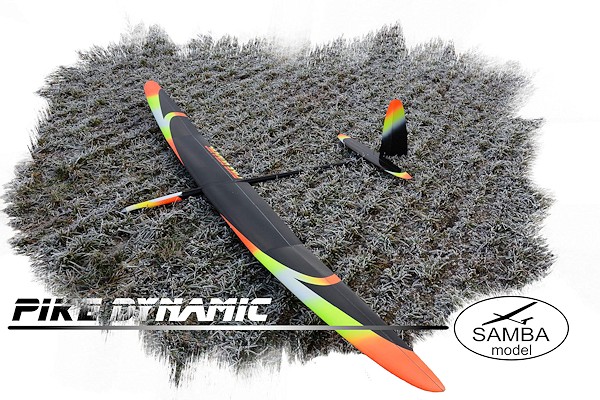

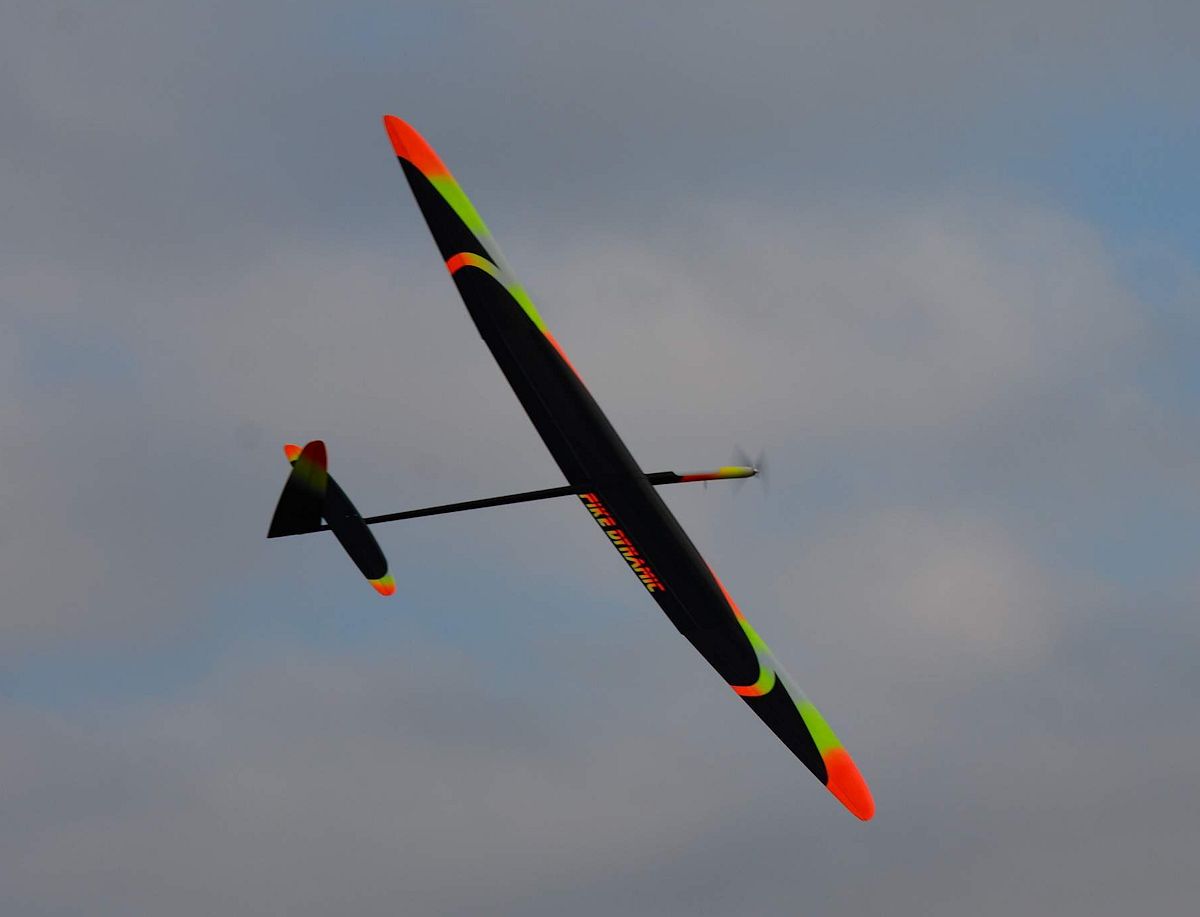

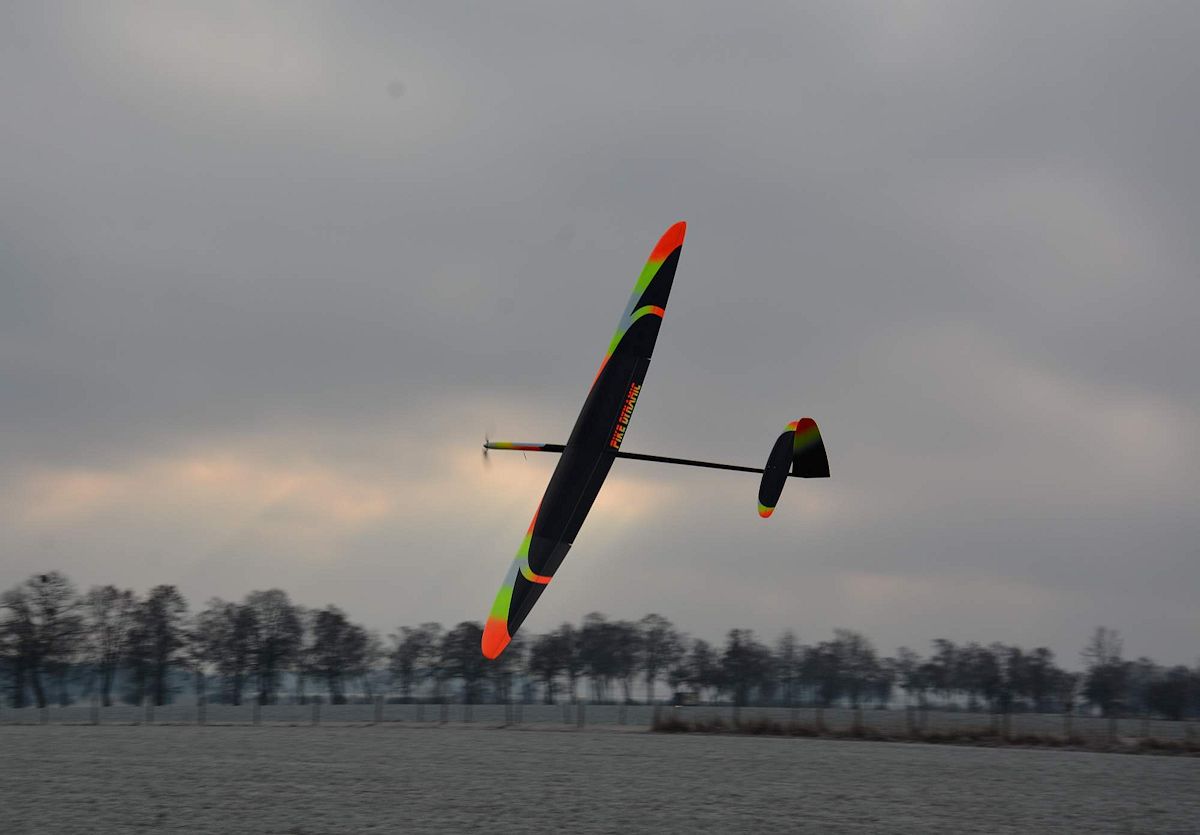

PIKE DYNAMIC F5J
Producing a new model that will beat the competition is very difficult, you can be certain that we did it. The new Dynamic is more than you might expect at first sight. Although visually similar to the Perfection the Dynamic is an all new design. Two of the most important qualities of a F5J model are the ability to circle at very low altitudes while in a thermal and to be able to move around the sky with minimal loss in height. The Dynamic excels in both areas, combined with low flying weights and improved controllability in landing we believe the Dynamic is the perfect choice for F5J pilots.

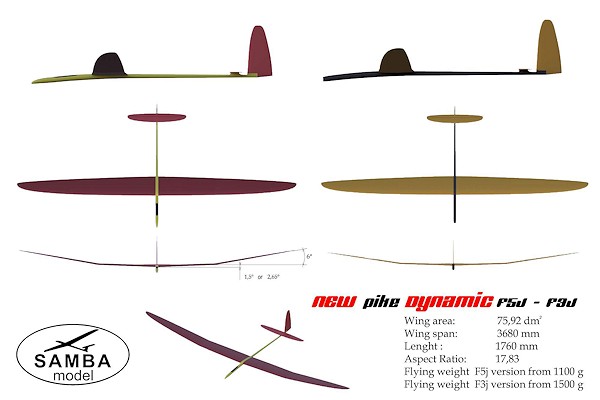

The Dynamic was designed using CAD/CAM technology, all parts are completely produced out of carbon fiber.
Dynamic vs. Perfection


•  New F5J specific airfoil- Exact camber changes must be made for each Flight Mode, this allows unbelievable range in speed.

•  Thinner Fuselage

•  Increased dihedral on wings tips allows for increased turning performance. Center joiner can be 3 or 5.3 degress. Wider flaps for increased landing control and wider ailerons for more precise handling.

•  RTF weight starting at 1100g.

•  Control of flaps and ailerons is available with our LDS system http://www.f3j.com/precision/lds/index.htm or delivered with 2mm GFK control horns

•  Elevator and rudder are produced using machined solid core foam technology with low weights.

The PIKE Dynamic is delivered with pre-bonded pushrod housings in the fuselage, wire harness installed wings and supplied for fuselage, GFK control horns (if customer doesn’t order LDS) for ailerons and flaps, couplers for pushrods in fuselage, and 2mm carbon fiber pushrods.
Many pilots want extremely low flying weights but low weight won’t do you any good if you can’t get back to the landing tape. In F5J, competition results are often decided by who can catch a thermal and return from downwind.
It’s not necessary to write any more about the new Dynamic, better go try one for yourself.

Samba Models

FAI F5J area

Pike Dynamic - Cross tail

Model aircraft wing area including part of fuselage between wings	75,91 dm2
Model aircraft tailplane area	7,8 dm2
Model aircraft total surface area	83,71 dm2
Wing span	3681 mm
FAI F5J minimum weight	1005 g
FAI F3J minimum weight	1674 g

Pike Dynamic V-tail

Model aircraft wing area including part of fuselage between wings	75,91 dm2
Model aircraft tailplane area	7,5 dm2
Model aircraft total surface area	83,41 dm2
Wing span	3681 mm
FAI F5J minimum weight	1001 g
FAI F3J minimum weight	1668 g

Building instructions and settings can be found HERE
