Mount for gluing IDS levers to flaps and ailerons.

It is possible to order a Prestige 2PK equipped with IDS.

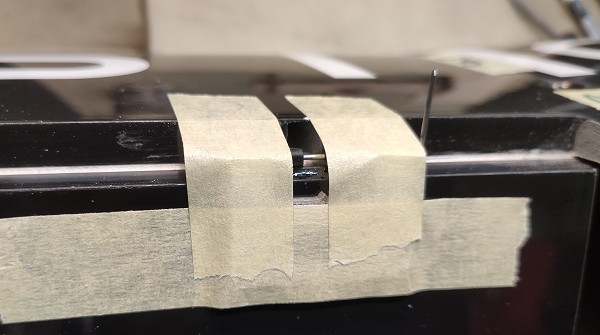

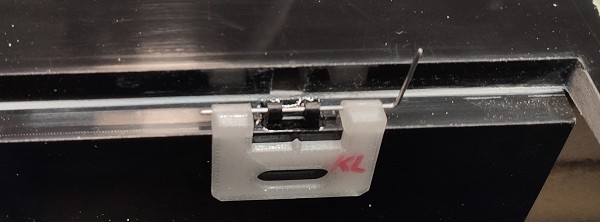

For those who want to install the servos themselves, we have prepared a mount, which can be printed on a 3D printer to stick the control horns to the flaps and ailerons.
In particular, the position of the lever in the flap is very important for the correct
function of the IDS system.

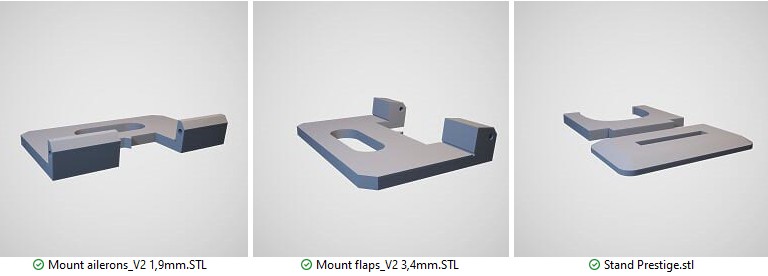

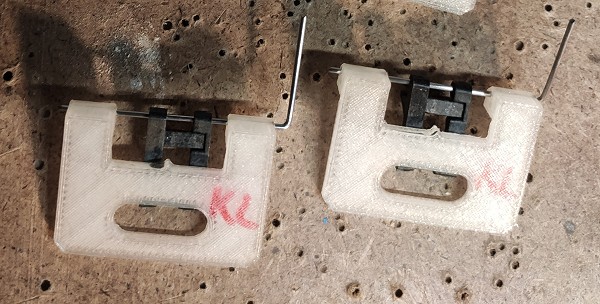

Mount for flaps and ailerons
Materiál PLA
Filing 25%
repair the hole with a 1 mm drill bit
3D .STL files

Stand for fuselage
Filing 25%
You nedd add FOAM 2x6x78 mm
Silicon door stopper 8mm 4 pcs underside
3D .STL files
